U862 Series

Product Features

Fabricated of #22 gauge stainless steel with a #4 satin finish

Waste receptacle has a 2 gallon capacity

Product Specs

Cabinet: Fabricated of #22 gauge stainless steel. All exposed surfaces have a #4 satin finish. Flange: Fabricated of #22 gauge stainless steel one-piece drawn seamless construction. No seams or exposed miters with 1/4” returns to wall surface. Napkin Disposal: Self closing push panel door is fabricated of #22 gauge stainless steel. Removable Waste is fabricated of same material with pin tumbler lock. Waste is identified with International Graphic symbol. Toilet Tissue Dispenser: #22 gauge stainless steel hat adapters secure chrome plated, spring loaded rollers in place. U007 Theft Resistant Adapter: Prevents spindle from being removed until roll has been depleted. Hinges: All hinges are full length, heavy duty, stainless steel piano type hinges. Collars: #22 ga stainless steel finished to match cabinet. Overall Size: 17 1/4”W x 12 3/4”H x 4 1/4”D 438mm x 832mm x 108mm Wall Opening: 15 3/4”W x 11 1/4”H 400mm x 285mm Waste Capacity: 2 Gallons (.26 cu ft) Toilet Tissue: Two standard rolls with a 5 1/4” (133mm) OD.

Installation Instruction

Provide rough wall opening at desired or specified location of 15 3/4"W x 11"H. (Depth of opening will depend on type mounting required.) Place lower unit in opening to ensure proper fit. If unit fits properly in opening, secure with proper fasteners per

U862

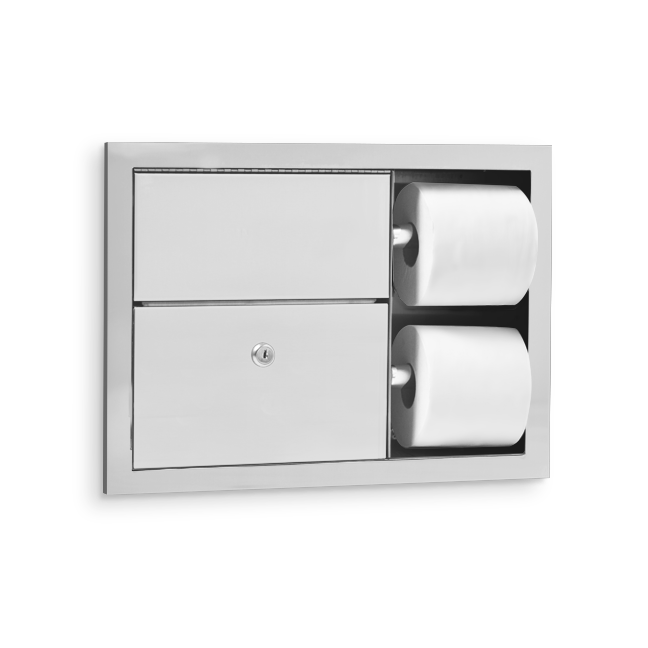

Dual Toilet Tissue Dispenser & Sanitary Napkin Disposal - Recessed
