U477

Product Features

Fabricated of #22 gauge stainless steel with a #4 satin finish

Towel dispenser is vanity mounted

Product Specs

Door: Fabricated of #22 gauge stainless steel with a #4 satin finish on all exposed surfaces.

Flange: Fabricated of same material as door with 1/4" returns for maximum rigidity. Door stops and counter weight prevent panel past a predetermined spot that keeps door from opening while not being used.

Overall Size: 6 7/16"W x 14 1/4"L

163mm x 361mm

Installation Instruction

Coordinate installation with architect and contractor before providing a cut out in vanity to avoid interference with pipes. Provide cut out 5"W x 12 1/2" Install waste door in opening and secure at four (4) points with proper fasteners (fasteners not pr

U477

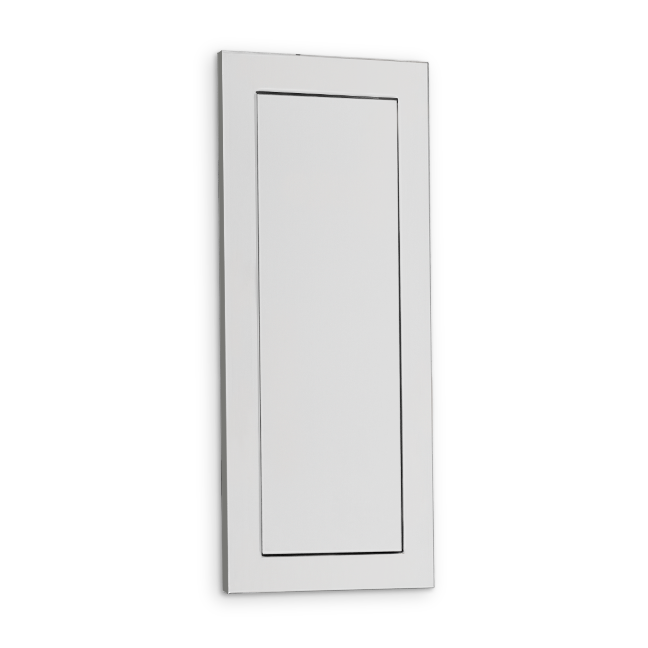

Push Panel Waste Door - Vanity Mounted





Technical documents
