U5704

Product Features

Fabricated of #18 gauge stainless steel with #4 satin finish

Waste receptacle has a 2 gallon capacity

Unit features Uni-door construction

Product Specs

Uni-Door: Fabricated of #18 gauge stainless steel with a #4 satin finish and 1/2"returns to wall surface. Body: Fabricated of #22 gauge stainless steel. Push Door: Self closing door is fabricated of #22 gauge stainless steel with a #4 satin finish. Waste: Fabricated of #22 gauge stainless steel with hemmed edges and wire handle for easy removal. Flange: Fabricated of #22 gauge stainless steel with a #4 satin finish and 1/4" return to wall with no visible seams or miters. Hinges: Full length, stainless steel piano type hinges. Locks: Pin tumbler commercial quality locks keyed like all other AJW accessories. Collars: Fabricated of #22 gauge stainless steel with #4 satin finish to match cabinet body. Overall Size: 17 1/2"W x 17 1/2"H x 4 1/4"D 438mm x 438mm x 108mm Wall Opening: 15 3/4"W x 15 3/4"H x 4"D 400mm x 400mm x 102mm Capacity: 2 Gallons (.26 cu ft) U5704-S2: 2" semi-recessed collar with 2" (51mm) wall opening U5704-SM: Surface Mounted

Installation Instruction

Recessed: Coordinate the wall opening with contractor/architect to avoid interference with pipes, vents, etc. Provide wall opening 15 3/4"w x 15 3/4"H. Remove waste and insert cabinet. If collar is required, slip collar over the back of cabinet before pla

U5704

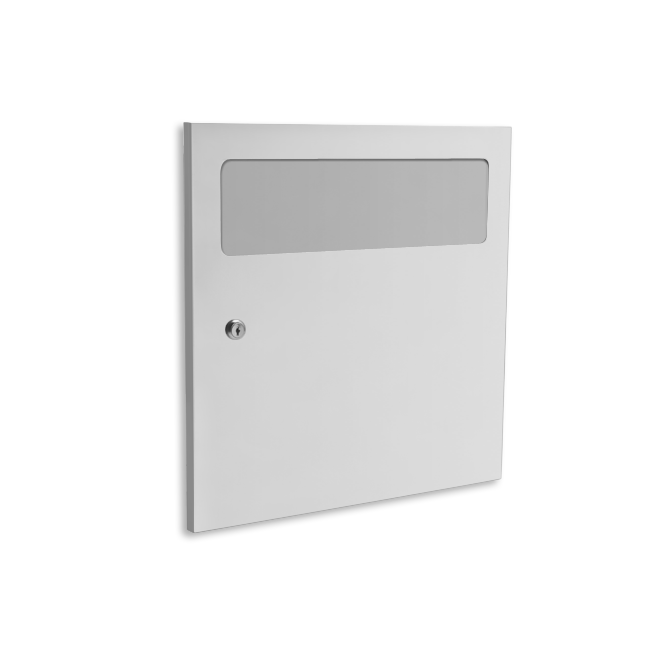

Unidoor 2 Gallon Sanitary Napkin Disposal - Recessed
