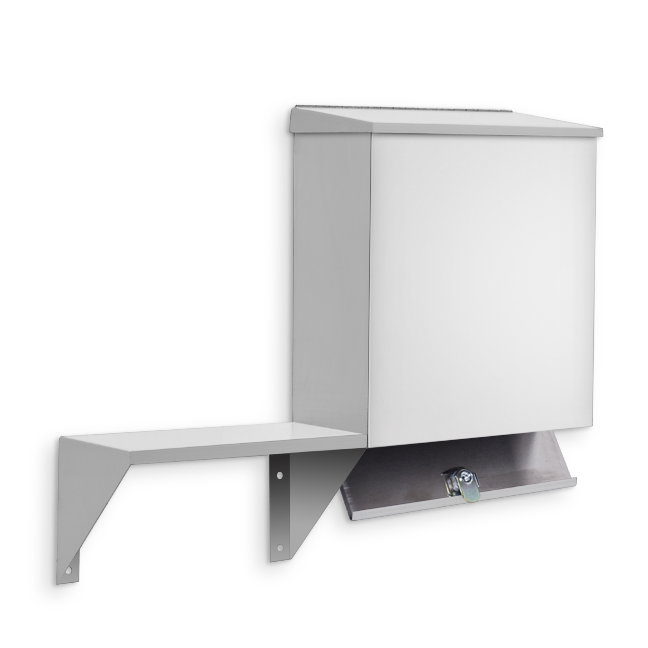

U592

Product Features

Fabricated of #22 gauge stainless steel with a #4 satin finish

Waste receptacle has a 1.5 gallon capacity

Bottom panel is hinged for easy removal of contents

Unit is equipped with a mounted storage shelf

Waste can is covered to maintain a sanitary environment

Product Specs

Cabinet Body: Fabricated of #22 ga stainless steel with #4 satin finish. Seamless construction with radius and hemmed edges.

Cabinet Back: Stainless steel welded to cabinet body with key hole mounting points.

Cover: Fabricated of #22 ga stainless steel #4 satin finish with embossed handles on each side and sloped top.

Bottom Panel: #22 ga hinged and locked for removal of contents.

Hinges: Heavy duty, full length, stainless steel piano type hinges.

Lock: Commercial quality keyed like all other AJW cabinets.

Shelf: Fabricated of #22 ga stainless steel with 1/2" bends, hemmed and ground smooth. Shelf supported by two stainless steel brackets. Can be mounted on either side of disposal.

International Graphic Symbol (IGS) available on request.

NDL-13: Waxed disposable liners. (50 per Case)

Installation Instruction

Provide an area at desired or specified location. Place unit on surface and transfer mounting points. Drill pilot holes and secure with proper fasteners. Install waxed liner. Follow same installation procedure for shelf. Shelf can be mounted to either sid

U592

1.6 Gallon Sanitary Napkin Disposal w/ Keyed Access Panel & Mounted Shelf- Surface Mounted
