U128PC Series

Product Features

Globe is tanslucent, shatterproof and corrosion resistant molded polyethylene

Holds 34 oz. of liquid soap

Spout is finished with highly polished chrome on brass

Easily operated with one hand

Product Specs

Piston & Spout: Highly polished corrosion resistant, stainless steel. Assembly rotates 360 degrees.

Flange & Collar: One piece highly polished chrome on brass.

Valve Assembly: All purpose bellows valve, fabricated of ABS material, with stainless steel return spring.

Shank: Chrome on brass, secured to collar. Special key provided that unlocks collar for servicing.

Globe & Collar: High impact translucent polyethylene.

Capacity: 34 fl oz

U128PCA: Same as U128PC, but with 6" (152mm) spout.

Recommend type soaps without chloric solutions for proper operation. All vanity soap dispensers are designed to be serviced above the counter

Installation Instruction

Provide a 7/8" - 1" diameter opening in vanity or basin. Insert shank through cut out and secure with supplied washers and wing nut. Connect supply tube with valve making sure notch end is at bottom. Secure globe and collar to shank. Fill globe above counter. Secure upper assembly to shank. Primer dispenser every time unit is serviced.

*For best performance, used pre-mixed low concentrate solutions. Dispensers should have periodic maintenance performed to ensure the life of the dispenser. Rinse out globe and valve with warm water to avoid sludge buildup.

Preventative Maintenance: Each dispenser should be flushed out aprx every 30 days with warm water to prevent valve from clogging with old soap. Do not use abrasive cleaners to clean dispenser.

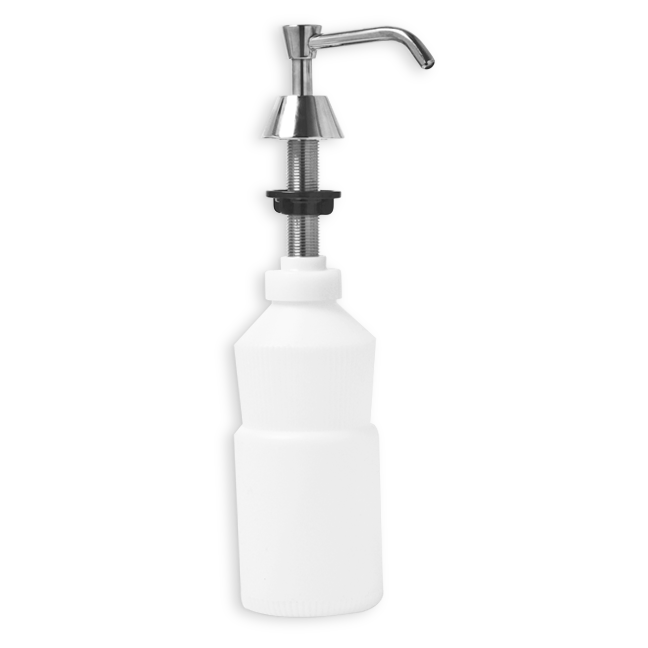

U128PC

34 oz Liquid Soap Dispenser, 4" Spout - Vanity Mounted
