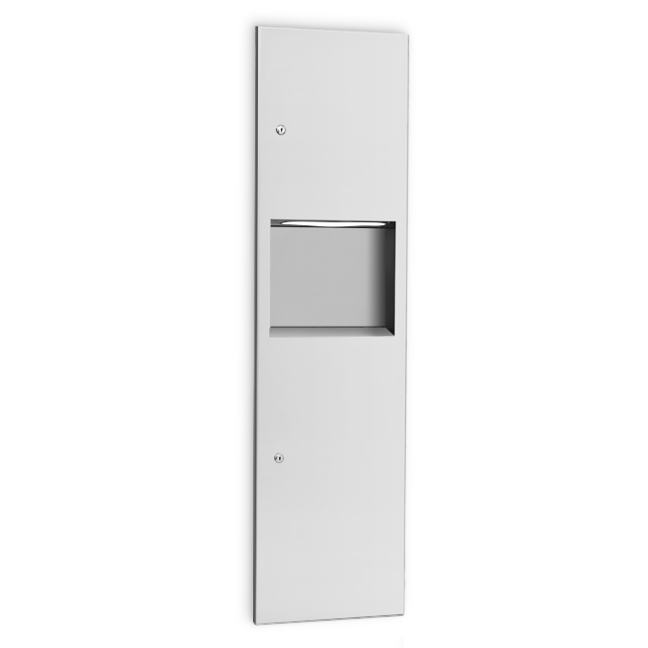

U6084
Product Features
Fabricated of #22 gauge stainless steel with a #4 satin finish
Holds 600 c-fold, 800 multifold or 1200 singlefold towels
Waste receptacle has a 6 gallon capacity
Unit features Uni-door construction
Product Specs
Body: Fabricated of #22 ga stainless steel with a #4 satin finish.
Flange: Fabricated of #22 ga stainless steel with #4 satin finish and 1/4" returns to wall, no miters or welds.
Cabinet Back: Fabricated of stainless steel formed for rigidity with multiple welds to cabinet body.
Uni-Door: Fabricated of #18 ga stainless steel with #4 satin finish, one piece door with 1/2" returns.
Towel Dispenser: Dispensing area has hemmed edges to prevent injury and towel tearing.
Removable Waste Capacity: 6 gallon (.80 cu ft) removable waste, with heavy duty handle for easy removal. Push panel door covers waste Hinges: Heavy duty, full length, stainless steel piano type hinge.
Lock: Pin tumbler commercial quality keyed like all other AJW cabinets.
Collars: Fabricated of #22 ga #4 satin finish stainless steel finished to match cabinet body
Overall Size: 14 1/2"W x 54 1/4"H x 6 1/4"D
368mm x 1378mm x 159mm
Wall Opening: 12 3/4"W x 52 1/2"H x 6"D
324mm x 1334mm x 152mm
U6084-S2: semi-recessed with 2" collar 4" wall opening
U6084-S4: semi-recessed with 4" collar 2" wall opening
U6084-SM: Surface mounted with full skirt.
Options:
-VL7: Reusable vinyl liner.
Towel Capacity: 600 c-fold or 800 multifold or 1200 singlefold
Waste Capacity: 6 gallons (.80 cu ft)
Installation Instruction
Coordinate installation with contractor and architect to avoid interference with pipes vents etc. Provide a rough wall opening 12 3/4"W x 52 1/2"H. Wall opening depth will depend on style mounting. If a collar is required, slip over back of unit. Remove w
