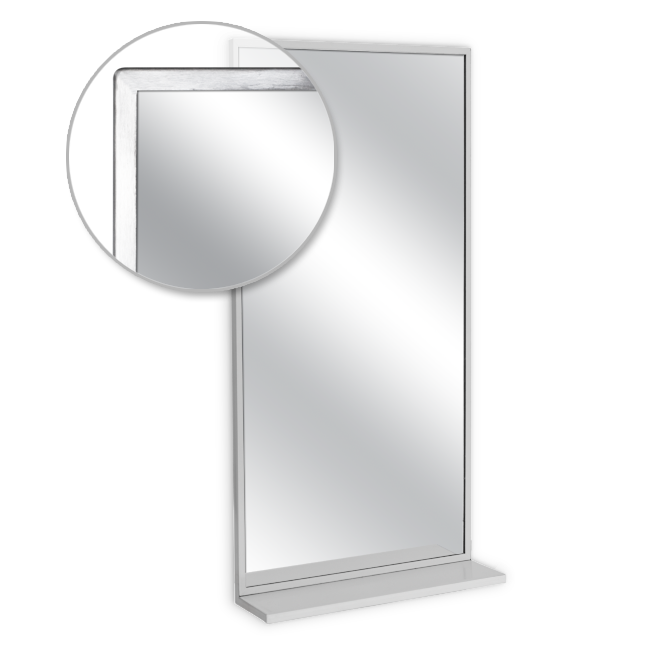

Fabricated of #18 gauge stainless steel with #4 satin finish
Mitered corners are ground and polished smooth
Multiple reflective surfaces available
Unit is equipped with a mounted storage shelf
Mirror comes with a 15 year warranty against silver spoilage
Frame: Fabricated of #18 ga stainless steel, #4 satin finish. 3/4” x 3/4” frame with welded mitered corners are ground and polished smooth. #22 ga concealed “Z” channel is spot welded to frame for greater rigidity.
Mirror: 1/4" thick type 1 transparent flat type, class 1 - clear glass mirrors. Mirror is coated with silver and sealed with a uniform electrolytic copper plating, along with two coats of paint for added protection. Mirrors are guaranteed against silver spoilage for a period of 15 years. Mirrors conform to AS™ C1036 and AS™ C1503-R8.
Shelf: #18 ga stainless steel with #4 satin finish. Shelf is 5”D x full width of mirror. All edges are turned down 1/2” with front edge turned back 1/2” for rigidity and prevents possible injury. #18 ga support bracket is welded to both frame and shelf then ground smooth.
Filler: 3/16” thick full size, shock absorbing, water resistant, non-abrasive polyethylene padding protects all concealed mirror surfaces.
Back: #20 ga pre-plated galvanized steel, with embossed horizontal louver mounting brackets. Embossed theft resistant pressure activated clip lock device, locks mirror in place to wall hangers.
Hangers: Fabricated of #20 ga pre-plated galv. steel.
Standard Sizes Available (W x H): 16”x24”, 16”x30”, 18”x24”, 18”x30” 18”x36”, 24”x30”, 24”x36”
Mirrors conform to Federal Specifications DD-M-00411b & DDg- 541D.
-VC: Safety Glass(Vinyl clad)
-T: Tempered Glass
-LG: Laminated Glass
-PM: Plastic Acrylic
-8B: #8 Reflective s/s
Rec. max size-8B mirrors: 72”W x 47 1/2”H
Mirrors are always ordered Width x Height
Fabricated to a tolerance of ± 1/8”
Coordinate installation with architect / contractor for specific mounting location and height for each mirror application. Making sure "I" bracket is level, transfer all mounting point locations to wall surface from drawing. Secure brackets with proper f
