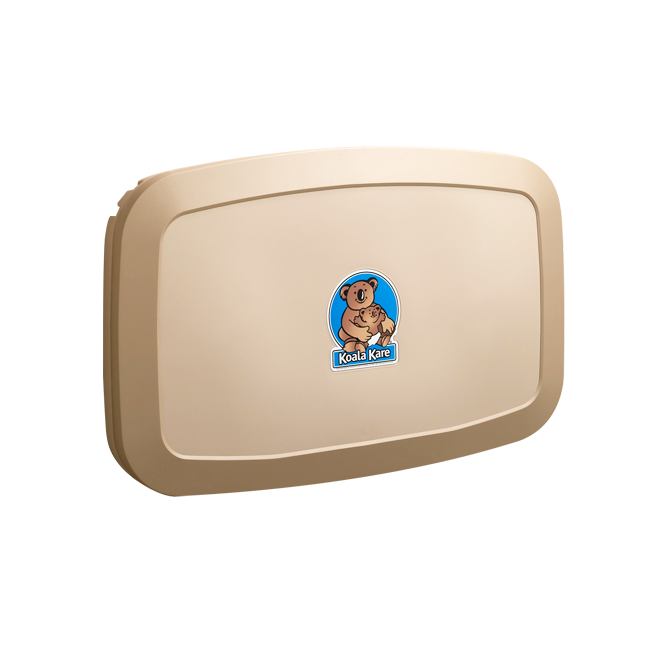

U944 Series
Product Features
FDA approved injection molded polypropylene with microban antimicrobial additive
Availible in grey and cream
Complies with ASTM static loads when properly installed.
Available Colors: Cream & Grey
Product Specs
Body: FDA approved injection molded polypropylene with Microban antimicrobial additive. Reinforced steel-on-steel hinge mechanism and metal mounting chassis. Labeled usage instructions and safety messages in four languages. (Braille label optional)
Liner Dispenser: An integral part of body that is standard with each unit. (Capacity: 50)
Pneumatic Cylinder: Provides slow opening and closing of bed. Complies with AS™ static loads when properly installed.
Safety Straps: Nylon safety strap snap lock fastens to hold child securely in place.
Overall Size: 35"W x 22"H x 4"D (closed) 22 1/8"D (open)
889mm x 558mm x 102mm (closed), 561mm (open)
Installation Instruction
Coordinate installation with architect or contractor to avoid interference with surrounding objects. Hold unit up to wall and open to verify there are no obstructions to interfere with operation of station. From finished floor to the top of the unit close
