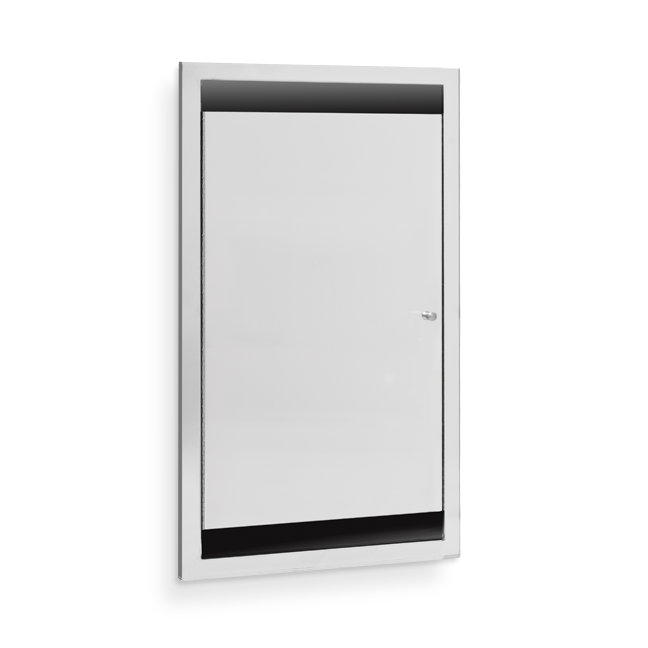

Fabricated of #22 gauge stainless steel with a #4 satin finish
Cabinet holds one bedpan
Fabricated with one fixed storage shelf
Body: Fabricated of #22 ga stainless steel. 2 1/2" space above and below door allows for air circulation.
Flange: Fabricated of #22 ga stainless steel with #4 satin finish and 1/4" returns to wall, no miters or welds.
Cabinet Back: Fabricated of stainless steel formed for rigidity with multiple welds to cabinet body.
Cabinet Door: Fabricated of #22 ga stainless steel with #4 satin finish secured by means of magnetic catches with door knob or easy opening.
Lower Shelf: Lower shelf is #22 ga stainless steel finished to match body with front edge rolled to prevent injury.
Upper Shelf: Stainless steel shelf welded in place for storage.
Retaining Rod: Stainless steel rod across the width of the cabinet prevents bed pan from falling out when doors are opened.
Hinge: Heavy duty, full length, stainless steel piano type hinge.
Collars: Fabricated of #22 ga #4 satin finish stainless steel finished to match cabinet body.
Overall Size: 17 1/4"W x 27 1/4"H x 6 1/4"D
438mm x 692mm x 159mm
Wall Opening: 15 3/4"W x 25 3/4"H x 6"D
400mm x 654mm x 152m
U951-S2: 2" semi-recessed with 4 1/4" wall opening
U951-S4: 4" semi-recessed with 2 1/4" wall opening
U951-SM: Fully surface mounted
Coordinate installation with contractor and architect to avoid interference with pipes vents etc. Provide a rough wall opening 15 3/4"W x 25 3/4"H. Wall opening depth will depend on style mounting. If a collar is required, slip over back of unit. Open do
