Product Features

Fabricated of Heavy Guage Grey Coated Galvanized Steel.

Holds one standard toilet tissue roll with storage space for an additional roll

Theft resistant spindles are available for this product

Product Specs

Body: Fabricated of heavy gauge grey coated galvanized steel.

Flange: Fabricated of #22 gauge bright chrome plated steel, drawn one piece construction with beveled edges.

Posts: Fabricated of die cast Zamac with high luster, nickel and chrome finish.

Spindles: High impact ABS material with heavy duty internal spring.

Optional U007 Theft Resistant Adapter: Prevents spindle from being removed until roll has been depleted.

Overall Size: 6 5/16"W x 6 5/16"H x 6 9/16"D

160mm x 160mm x 167mm

Wall Opening: 5 3/8"W x 5 3/8"H x 4"D

137mm x 137mm x 102mm

Capacity: One standard roll 5 1/4" OD with one spare roll.

Installation Instruction

Coordinate installation with architect and contractor to avoid interference with pipes, vents, etc. Provide a rough wall opening 5 3/8"W x 5 3/8"H x 4"D. Remove spindle from post and insert in rough wall opening. Making sure unit is level secure with prop

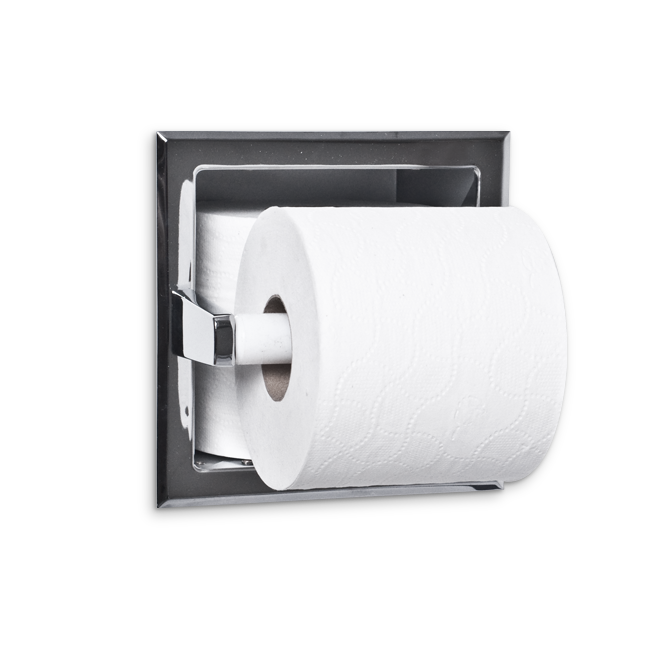

Single Toilet Tissue Dispenser w/ Hide-A-Roll - Recessed

Technical documents
