U865 Series

Product Features

Fabricated of #22 gauge stainless steel with a #4 satin finish

Holds two standard toilet tissue rolls

Waste receptacle has a 2 gallon capacity

Product Specs

Cabinet: Fabricated of #22 gauge stainless steel. All exposed surfaces have a #4 satin finish.

Adj. Flanges: Fabricated of #22 gauge stainless steel one-piece drawn seamless construction. No seams or exposed miters with 1/4" returns to wall surface. (Exposed mounting points)

Toilet Tissue Dispenser: #22 gauge stainless steel hat adapters secure chrome plated, spring loaded rollers in place.

U007 Theft Resistant Adapter: Prevents spindle from being removed until roll has been depleted.

Hinges: All hinges are full length, heavy duty, stainless steel piano type hinges.

Overall Size: 17 1/4"W x 20"H x 4 1/4"D

438mm x 508mm x 108mm

Adjustable to fit partitions 1/2"- 1 1/4" thick.

Wall Opening: 15 3/4"W x 18 1/2"H

400mm x 470mm

Toilet Tissue Capacity: Four standard rolls with a 5 1/4" (133mm) OD.

Waste Capacity: 2 Gallons (.26 cu ft)

Installation Instruction

Provide rough wall opening at desired or specified location of 15 3/4"W x 18 1/2"H. Place lower unit in opening to ensure proper fit. If unit fits properly in opening, secure side with the fixed flange at exposed mounting points. Secure adjustable flange

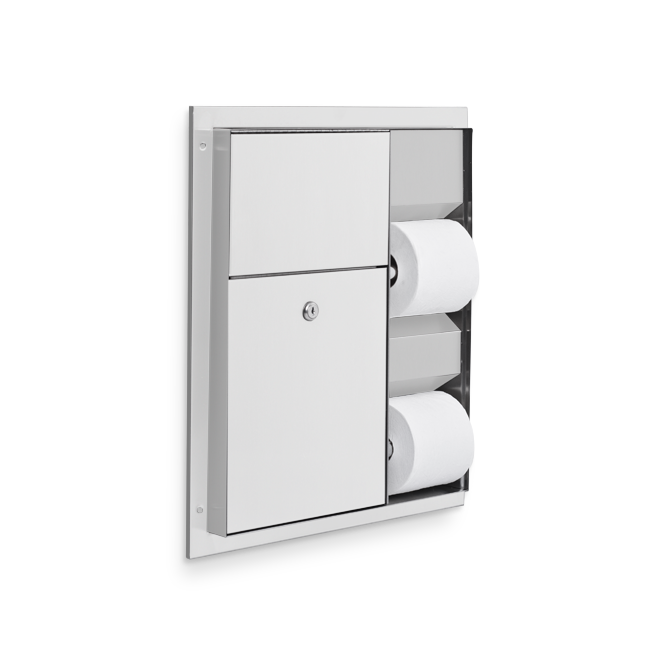

U865

Dual Toilet Tissue Dispenser & Sanitary Napkin Disposal - Partition Mounted
