U6104EA

Product Features

Fabricated of #22 gauge stainless steel with a #4 satin finish

Holds one standard size roll up to 8" in diameter

Hands free electric sensor provides easy operation

Unit features Uni-door construction

Product Specs

Body: Fabricated of #22 ga stainless steel with a #4 satin finish.

Flange: Fabricated of #22 ga stainless steel, satin finish with no miters or welds and 1/4" returns.

Uni-Door: Fabricated of #18 ga stainless steel, #4 satin finish with 1/2" returns and full length door stops.

Back: stainless steel formed for rigidity with multiple welds to cabinet body.

Automatic Dispenser: Operated by 4 "D" cell alkaline batteries (not included) that will dispense one standard roll 8"wide with a maximum 7 3/4" OD. Automatic sensor will dispense a re-measured amounts of paper each time and will not dispense paper again until sensor range is cleared and allowed to reset itself.

Removable Waste: Removable steel waste.

Hinge: Full length, stainless steel piano type hinge.

Locks: Commercial quality, pin tumbler keyed alike.

Collars: 304 #22 ga stainless steel matches cabinet finish.

Overall Size: 14 5/8"W x 54 1/4"H x 10"D

371mm x 1378mm x 254mm

Wall Opening: 12 3/4"W x 52"H x 9 3/4"D

324mm x 1334mm x 248mm

Towel Capacity: One standard roll up to 8" wide (non-perforated)

Waste Capacity: 11.25 gallons (1.5 cu ft)

*Recommended 600ft roll for best results.

U6104EA-S2: Semi-recessed 2" collar with 6" wall opening

U6104EA-S4: Semi-recessed 4" collar with 6" wall opening

U6104EA-S6: Semi-recessed 6" collar with 4" wall opening

U6104EA-SM: Surface mounted

Options:

-VL1: Reusable vinyl liner

Installation Instruction

Coordinate installation with contractor and architect to avoid interference with pipes vents etc. Provide a rough wall opening 12 3/4"W x 52 1/2"H. Wall opening depth will depend on style mounting. If a collar is required, slip over back of unit. Remove w

U6104EA

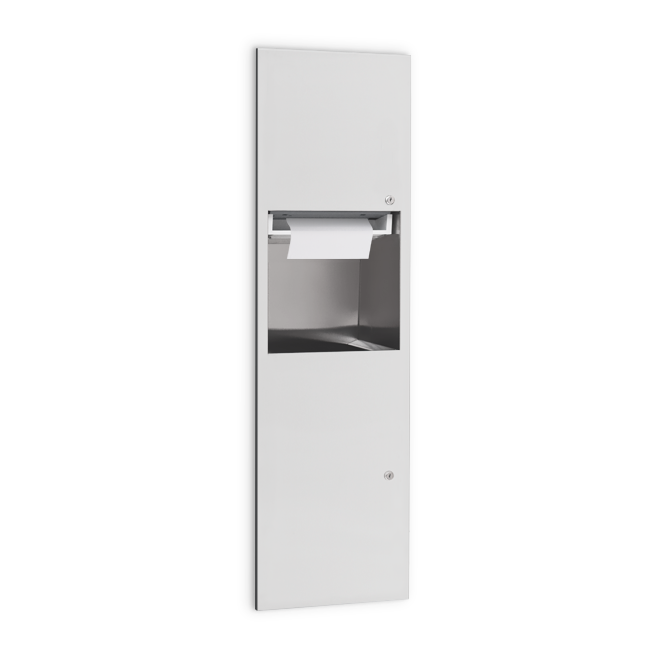

Unidoor Automatic Roll Towel Dispenser & Waste Receptacle Combination - Recessed








Technical documents
